MaxiSys Elite II

• 2022 Newest Version - Upgrade version of MK908P/MaxiSys Elite Scanner, which not only renew software and hardware configurations, but also added newer functions, such as guide functions, Battery Test, MaxiFix Cloud Service, Remote Expert Service and so on.
• Extensive Maintance Services - Autel MaxiSys Elite II automotive diagnostics scanner collects over 38+ maintenance for one-click sweep obstacles: Oil Reset, EPB, SAS, DPF Regeneration, Throttle, Suspension, ABS,etc.
• Bi-Directional Control  - Autel Elite II supports active test that can send commands to the vehicle’s ECU to activate the actuators, such as ABS, window, door, solenoids, relay, switch, valves, headlamps,etc, for directly monitoring their operation to help you pinpoint the faulty issues.
• Advanced Functions - Autel Elite II with J2534 has the same ECU programming & Coding capabilities as Autel Ultra, with which can replace existing software/fireware in ECUs to troubleshoot vehicle driveability, fuel efficiency, power loss and durability issues.

[keyfeatures]

[videos]

• The most extensive complete system coverage for more than 80 US domestic, Asian and European makes and models
• Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding and programming
• Uniquely integrated vehicle programming capabilities working with a SAE J2534-1 & -2 compliant vehicle programming pass-thru interface
• Automatic system and software updates with real-time push message notifications via internet
• Instant remote control tech support anytime, anywhere
• Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and errors
• One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
• Unique ergonomic design with rubberized outer protection and a rugged internal housing

Specification

Operating System	Android™ 7.0, KitKat
Processor	Samsung Exynos 8895 eight-core (4*M2 2.3G + 4*A53 1.7G)
Memory	4GB RAM 128GB On-board Memory
Display	9.7-inch LED screen with 1920x1200 resolutions
Connectivity	Wi-Fi (802.11 b/g/n)USB: 2.0, Mini USB 2.0 Wireless BT V2.1+EDR Class1, HDMI 1.4a SD Card (support up to 32 GB)
Camera (rear)	Rear-facing, 8.0 Megapixel AF with Flashlight
Sensors	Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output	Microphone • Single Speaker • 3-Band 3.5 mm stereo/standard headset jack
Power and Battery	15400 mAh 3.7 V lithium-polymer battery Charging via 12 V AC/DC power supply
Input Voltage	12 V (9-35 V)
Power Consumption	6.5W
Operating Temp	-10°C to 55°C (14 to 131°F)
Storage Temp	-20°C to 70°C (-4 to 158°F)
Dimensions (W x H x D)	312mm (12.28”) x 208mm (8.18”) x 36mm (1.41”)
Weight	1.48kg (3.26 lbs)
Protocols	ISO 9142-2,ISO 14230-2,ISO 15765-4,K/L line,Flashing Code,SAE-J1850 VPW,SAE-J1850, PWM,CAN ISO 11898,Highspeed,Middlespeed,Lowspeed and Singlewire CAN,GM UART,UART Echo Byte Protocol,Honda Diag-H Protocol,TP 2.0,TP 1.6,SAE J1939,SAE J1708V

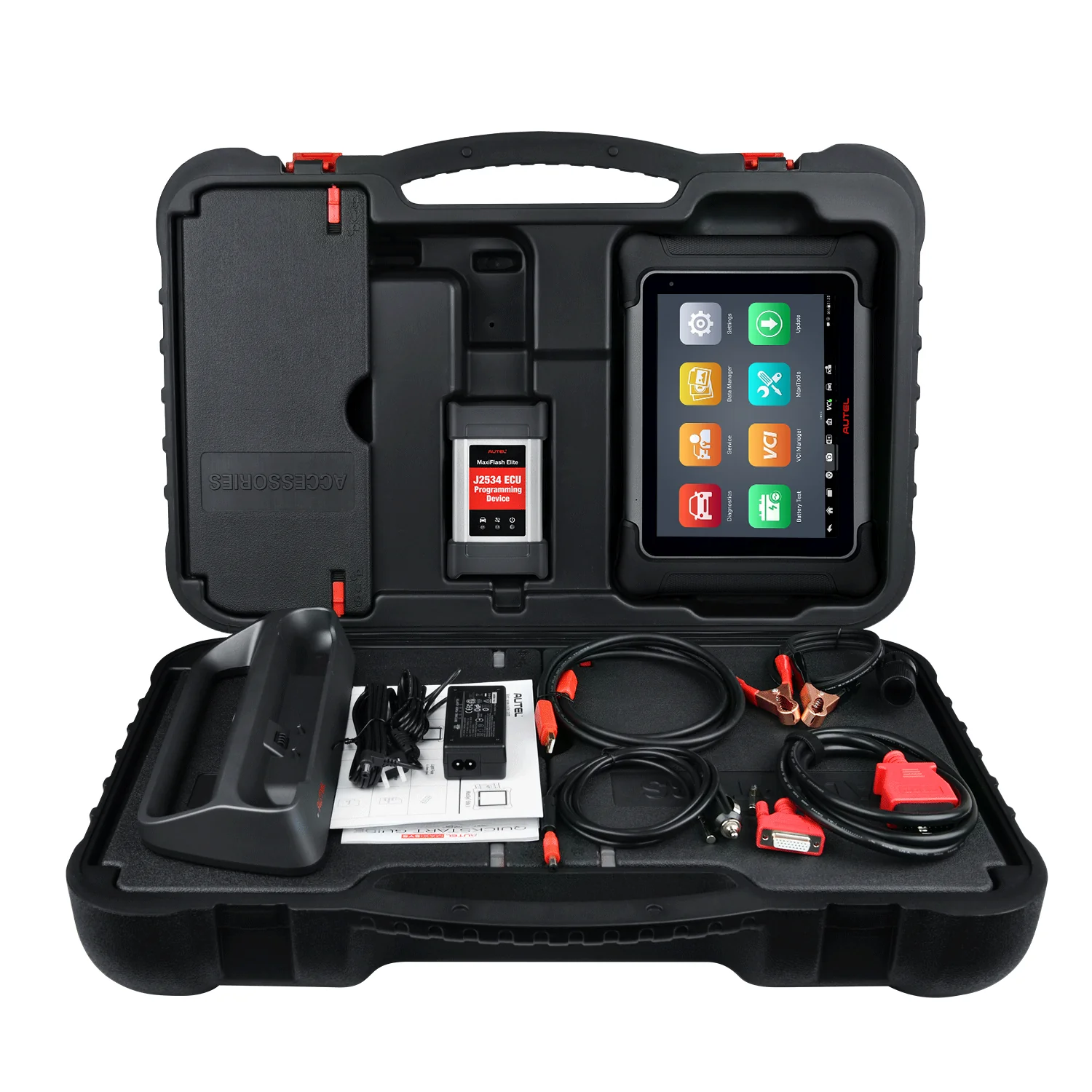

Pacakge List

• 1x Maxisys Elite II main unit
• 1x MaxiFlash Elite
• 1x Main cable
• 1x USB cable
• 1x AC/DC adapter (12V)
• 1x Clipper Cable
• 1x Cigarette lighter Cable
• 1x Lighter fuse
• 1x Quick reference guide
• 1x Packing list
• 1x Soft cloth
• 1x Carrying case
